Ventilation Door
When the Nature Comes Through Your Door.
Ventilation Door is Present with the Concept of Green Building
- Landed House
- Apartment
- Commercial
Price Range : For Luxury Class
Overview
NEXSTA Ventilation Door offers an energy-efficient home by utilizing natural resources including lighting from outdoors. It is manufactured with Japanese technology and is originally designed to adopt the Green Building Concept such as energy-saving by letting the fresh air inside.
Basic Performance
-
Structural (Wind Load)
1600 Pa Deflection L/125 and L/175
-
Water Tightness
50 Pa
-
Air Infiltration
Grade A-2 (JIS)
-
Open-Close Test
JIS A 1550 100,000 cycles
Features
Safety & Security
Prevent damage against strong wind, crime at night, and insect disturbance. Put hand under the catch & push along the track while pulling the knob.
Environmental Friendly Design
Originally designed to adopt the green building concept, and it enables to maximize the usage of natural light and many other benefits
Reliable Performance
Performance is secured by the bottom sill to prevent water and dust leak inside.
Variation
-

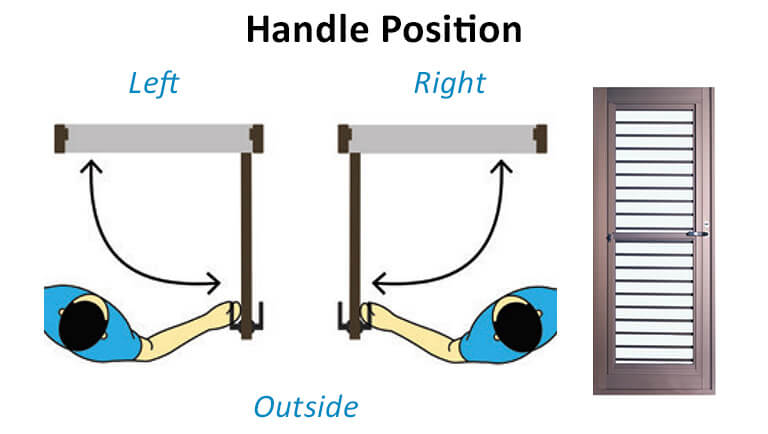

Ventilation Door Single Swing Outswing
-

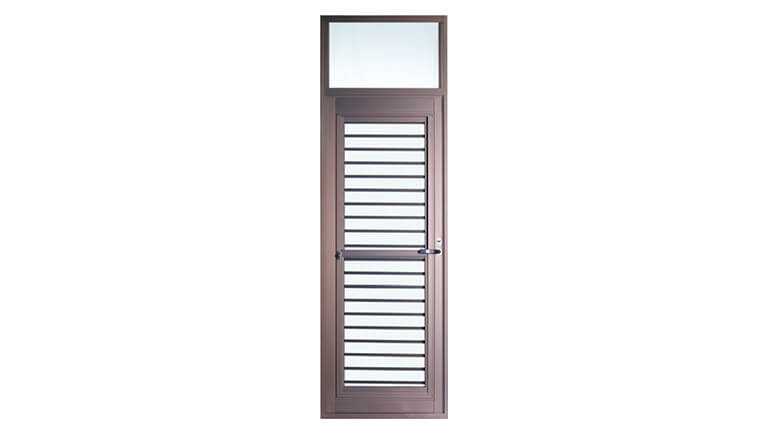

Ventilation Door + Composite window
Color Variation
YKK AP products are available in variety of finishes and colors.
- * Color may vary from the original, please kindly check the actual color sample.
Finishing Color
We have three type of surface coating, Anodize, Anodize Plus and Powder Coating.
General Anodize is normal type of anodized color as most popular method in Indonesia.
Anodize Plus is our special technical method, and its durability and appearance are much better than other anodized method. Powder coating can be used for various colors.
- Anodized
-
Anodized (General anodizing with sealing)
Anodized Plus (YKK AP Special Coating)
(anodizing with Electro Deposition) - Powder Coating
-
Powder Coating (Thickness minimum powder coating 50 μm)
Color Variation (Standard Colors)
Standard colors are our recommended colors. We have decided these colors based on our experience, and they can easily match with any color coordinate.
| Finishing Color | White / Ivory |
Light Gray / Champagne |
Deep Gray | Brown | Black |
|---|---|---|---|---|---|
|
Anodized Plus
Fitting for ExteriorResistant to rain and UV |
|
|
|
||
|
Powder Coating
Fitting for InteriorRe-paint OK |
|
|
|
|
- * Color may vary from the original, please kindly check the actual color sample
Lead Time Production
Standard colors have advantage in delivery time.
- *Delivery times vary by region as the above does not include delivery.
-
*This lead time is from producing at AP until delivering to AP distributors.
Please contact each distributor for the final delivery time.
| Standard Colors | |
|---|---|
| Performance Goods | 38-45 days |
| Other Colors | |
|---|---|
| Performance Goods | 46 days ~ |
| New Colors | |
|---|---|
| Performance Goods | 46 days ~ |
| Standard Colors | Other Colors | New Colors | |
|---|---|---|---|
| Performance Goods | 38-45 days | 46 days ~ | |
Repairing Tools
-
Touch Up SprayIt can be used to repair scratches on surfaces quickly.
-
Touch Up PenQuick-dry and easy-to-use pen type, especially for repairing scratched surfaces.
Accessories
Standard Parts

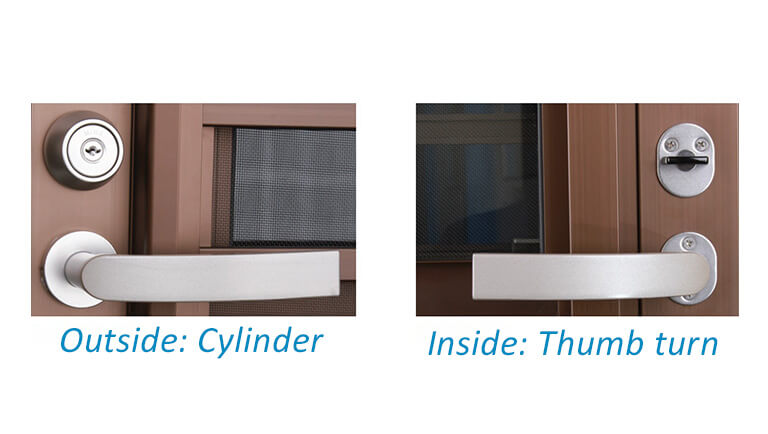

Lever Handle with Lock

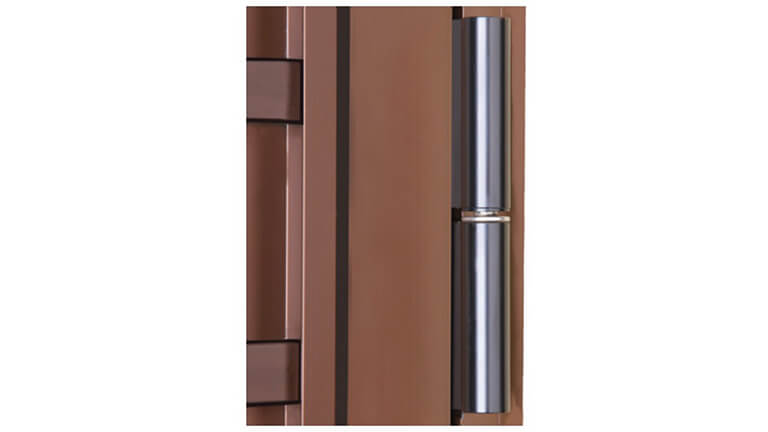

Butt Hinge [Aluminum]

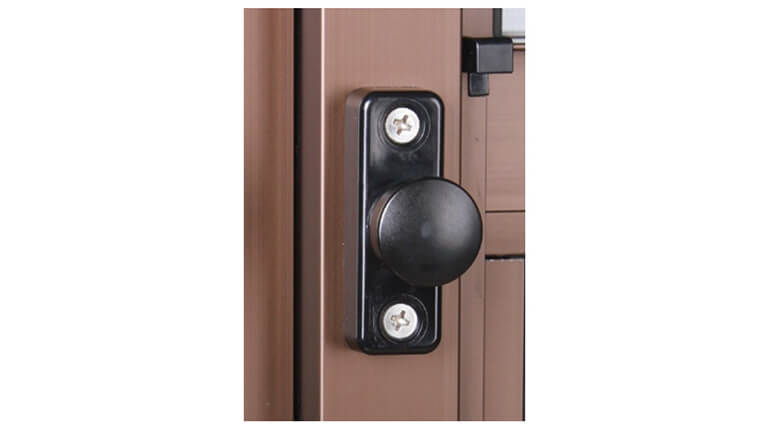

Double Hung Sliding Lock
Optional Parts

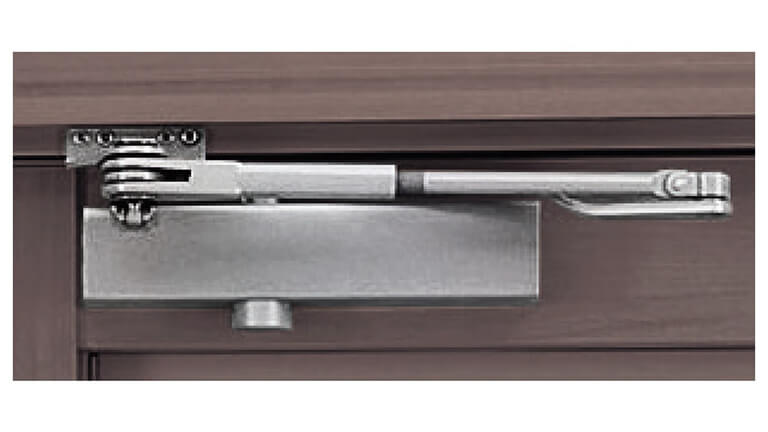

Door Closer
NEXSTA Lineup Catalog
Further detailed features and specifications are provided in the catalog. Please use this for downloading and considering the introduction of the system.
Contact Us
We will propose the most suitable products according to the request. Please feel free to contact us for details.
-
Detailed Specifications and Data
-
Product Price and Quote
-
Confirmation of Delivery Date
-
Proposal of Optional Parts
Information for Distributors
Scope of Work
Supply form : Finished Goods
| Scope |
Material Production |
Parts |
Processing Assembling |
Delivery | Installation |
Site Management |
Inspection | After Service |
|---|---|---|---|---|---|---|---|---|
| YKK AP Indonesia |  |
|
|
|
Optional | Optional | ||
| Distributors | |
|
|
|
Our Support System & Quality Control
-
Support
YKK AP Indonesia provides after-sales service to provide a comfortable living environment. It is one of our strengths to deliver high satisfaction to our customers.
-
Quality Control
Our products are strictly checked for quality at our testing center to provide our customers with high quality and reliable products.
-
YKK AP Distributors
YKK AP is developing a business rooted in the community with certified distributors.
