This is the first high-positioned ventilation window in Indonesia from YKK AP Indonesia. Our new Top Hung type, High Ventilation Window, can be easily opened and closed using an operation string (loopless chain).
Through YKK AP's research and development, we ensure that the high ventilation window provides optimum benefits to our customers.
Structural (Wind Load)
1600 Pa Deflection L/175
Isobaric System adaptable and watertight from outside within 75 Pa
Dust free and air tight system Grade A-4 (JIS)
More than 30,000 Cycle
Depends on Item

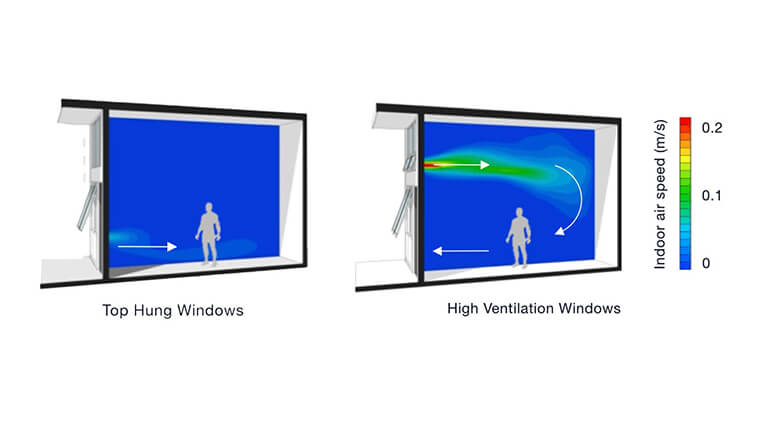

A Good Ventilation Method for Houses
Air circulation is three times ( 345% ) higher with a High Ventilation Window to raise thermal comfort and it gives more coziness.

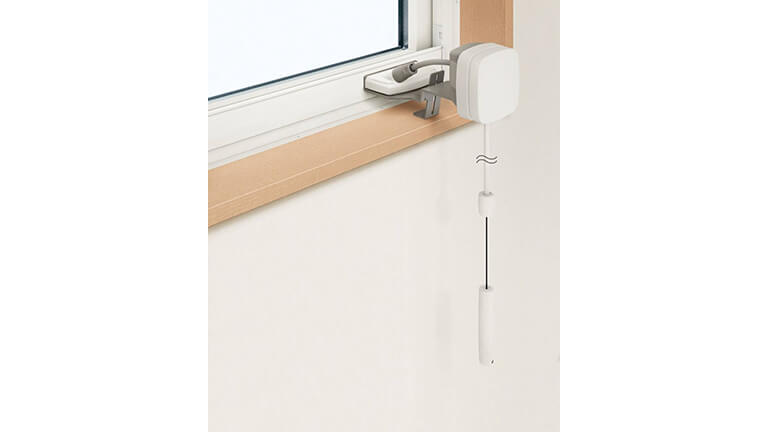

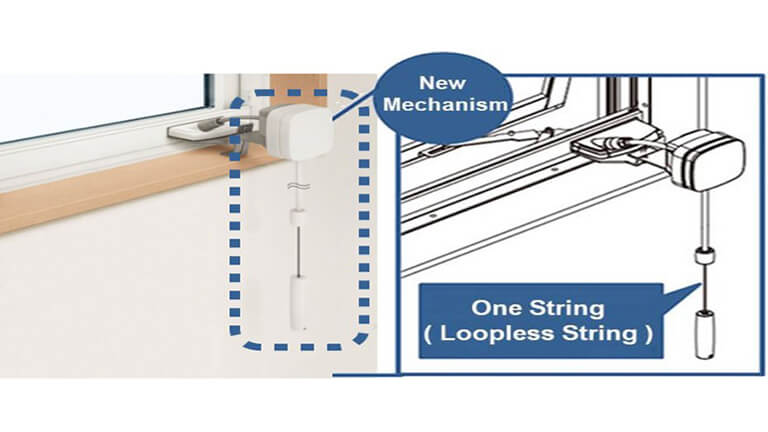

Easy to Operate High Position Window with Loopless Chain
The industry’s first new mechanism Loopless operation string. It provides easier and safer window operation.

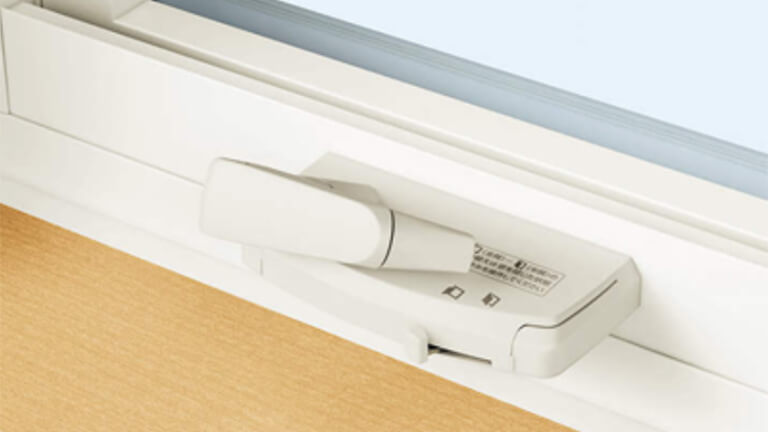

Easy and Safe Operator Handle
The low position uses an operator handle that can be operated by hand. It allows you to open and close the window easily by rotating the handle at the indoor side.
YKK AP products are available in variety of finishes and colors.
- * Color may vary from the original, please kindly check the actual color sample.
We have three type of surface coating, Anodize, Anodize Plus and Powder Coating.
General Anodize is normal type of anodized color as most popular method in Indonesia.
Anodize Plus is our special technical method, and its durability and appearance are much better than other anodized method. Powder coating can be used for various colors.
Anodized (General anodizing with sealing)Anodized Plus (YKK AP Special Coating)
(anodizing with Electro Deposition)
- Powder Coating
Powder Coating (Thickness minimum powder coating 50 μm)
Color Variation (Standard Colors)
Standard colors are our recommended colors. We have decided these colors based on our experience, and they can easily match with any color coordinate.
|Finishing Color||White / Ivory||
Light Gray /
Anodized PlusFitting for Exterior
Resistant to rain and UV
Powder CoatingFitting for Interior
- * Color may vary from the original, please kindly check the actual color sample
Lead Time Production
Standard colors have advantage in delivery time.
- *Delivery times vary by region as the above does not include delivery.
*This lead time is from producing at AP until delivering to AP distributors.
Please contact each distributor for the final delivery time.
|Performance Goods||38-45 days|
|Performance Goods||46 days ~|
|Performance Goods||46 days ~|
|Standard Colors||Other Colors||New Colors|
|Performance Goods||38-45 days||46 days ~|
Touch Up Spray
It can be used to repair scratches on surfaces quickly.
Touch Up Pen
Quick-dry and easy-to-use pen type, especially for repairing scratched surfaces.
NEXSTA – HIGH VENTILATION WINDOW
Top Hung Window that Makes Your Home Healthier with Better Ventilation
We will propose the most suitable products according to the request. Please feel free to contact us for details.
- Detailed Specifications and Data
- Product Price and Quote
- Confirmation of Delivery Date
- Proposal of Optional Parts
Information for Distributors
Scope of Work
Supply form : Finished Goods
|YKK AP Indonesia||Optional||Optional|
Our Support System & Quality Control
YKK AP Indonesia provides after-sales service to provide a comfortable living environment. It is one of our strengths to deliver high satisfaction to our customers.
Our products are strictly checked for quality at our testing center to provide our customers with high quality and reliable products.
YKK AP Distributors
YKK AP is developing a business rooted in the community with certified distributors.
