Top Hung window can provide natural light, good ventilation and can protect your home against moisture without compromising privacy.
With MADELA Top Hung, you can enjoy a wider view with a slim stile which has neat and clean appearance.
Structural (Wind Load)
Wind pressure resistant
up to 1200Pa (MADELA-H)
up to 600Pa (MADELA-L)
Watertight from outside
up to 200Pa (MADELA-H)
up to 100Pa (MADELA-L)
Provide quiet living atmosphere -25 dB
YKK AP Original Hardware
YKK AP Original Hardware is used for the main parts
Reliable Water Tightness
Sealer pad is used for metal joint, and processing is completed in YKK AP Factory
Compatible with Thin Walls
Since it is screwed with the core of the wall, the wall will not break. Clean fit with nonvisible screws or caps

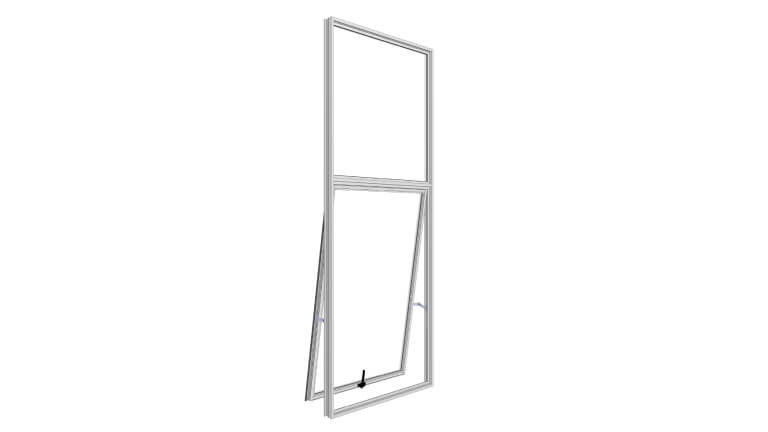

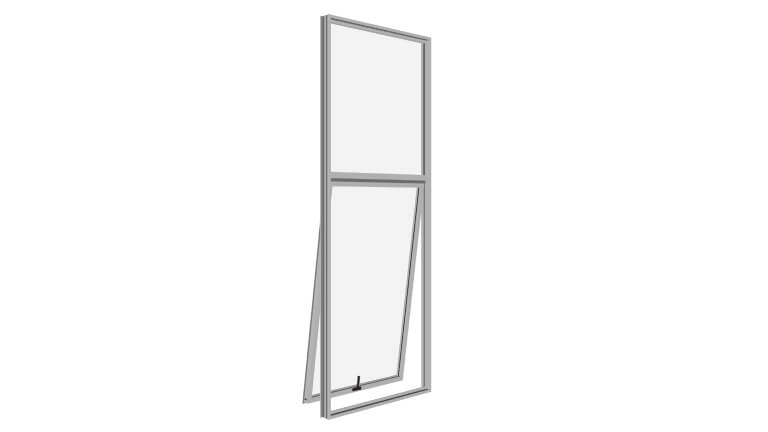

Top Hung (Single)

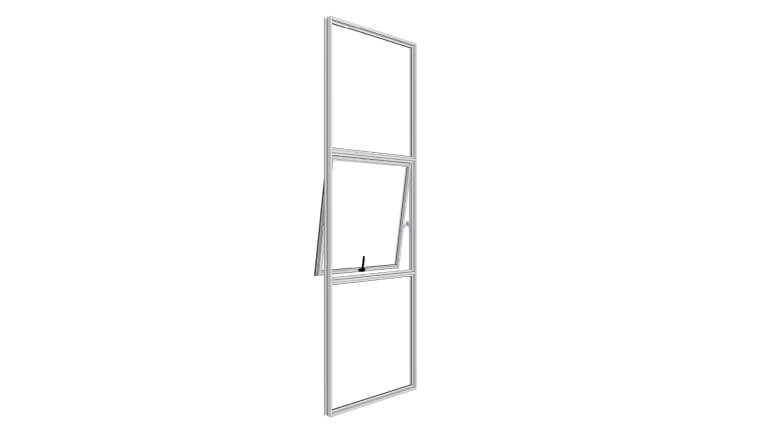

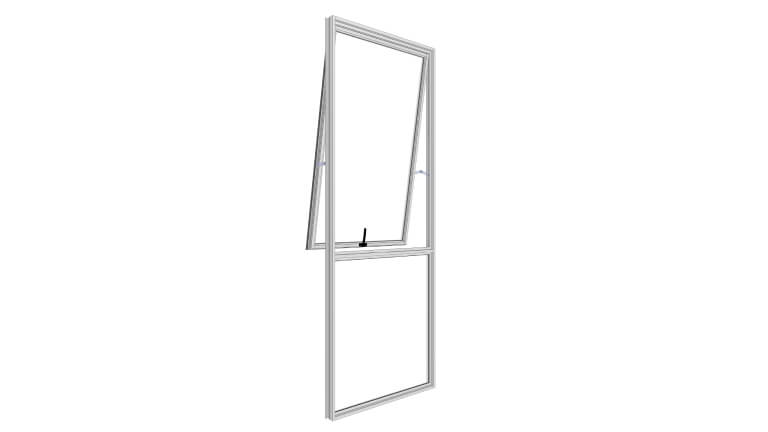

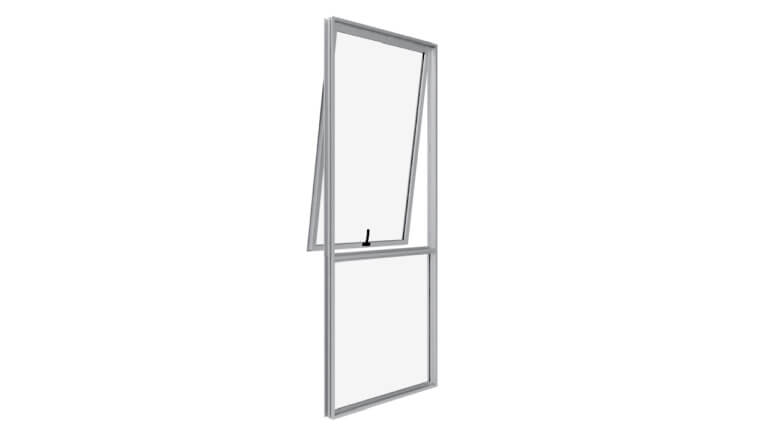

Step Window (2 Level)

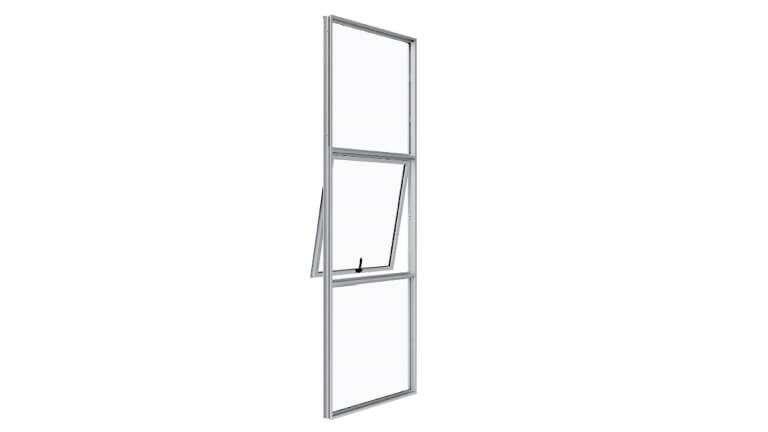

Step Window (3 Level)
YKK AP products are available in a variety of finishes and colors.
- * Color may vary from the original, please kindly check the actual color sample.
We have three type of surface coating, Anodize, Anodize Plus and Powder Coating.
General Anodize is normal type of anodized color as most popular method in Indonesia.
Anodize Plus is our special technical method, and its durability and appearance are much better than other anodized method. Powder coating can be used for various colors.
Anodized (General anodizing with sealing)Anodized Plus (YKK AP Special Coating)
(anodizing with Electro Deposition)
- Powder Coating
Powder Coating (Thickness minimum powder coating 50 μm)
Color Variation (Standard Colors)
Standard colors are our recommended colors. We have decided these colors based on our experience, and they can easily match with any color coordinate.
|Finishing Color||White / Ivory||
Light Gray /
Anodized PlusFitting for Exterior
Resistant to rain and UV
Powder CoatingFitting for Interior
- * Color may vary from the original, please kindly check the actual color sample
Lead Time Production
Standard colors have advantage in delivery time.
- *Delivery times vary by region as the above does not include delivery.
*This lead time is from producing at AP until delivering to AP distributors.
Please contact each distributor for the final delivery time.
|Performance Goods||38-45 days|
|Performance Goods||46 days ~|
|Performance Goods||46 days ~|
|Standard Colors||Other Colors||New Colors|
|Performance Goods||38-45 days||46 days ~|
Touch Up Spray
It can be used to repair scratches on surfaces quickly.
Touch Up Pen
Quick-dry and easy-to-use pen type, especially for repairing scratched surfaces.
Further detailed features and specifications are provided in the leaflet/catalog. Please use this for downloading and considering the introduction of the product.
We will propose the most suitable products according to the request. Please feel free to contact us for details.
- Detailed Specifications and Data
- Product Price and Quote
- Confirmation of Delivery Date
- Proposal of Optional Parts
Information for Distributors
Scope of Work
Supply form : Processed Goods (Delivered in Knockdown System)
|YKK AP Indonesia||
|Deliver to Distributors||Except AP matter :
Paid by the cause
of the matter
Deliver to Site
Dispatch Request Form
- *API delivers to distributors' warehouse or workshop only, on-site delivery is not possible.
Our Support System & Quality Control
YKK AP Indonesia provides after-sales service to provide a comfortable living environment. It is one of our strengths to deliver high satisfaction to our customers.
Our products are strictly checked for quality at our testing center to provide our customers with high quality and reliable products.
YKK AP Distributors
YKK AP is developing a business rooted in the community with certified distributors.
