Brand
Casement
With its durability, clean-and-neat-look frame design, MADELA Casement brings natural lighting and good ventilation to your space.
- Landed House
- Apartment
Price Range : For Middle Up Class
Brand Video
Overview
Casement window can provide natural light, good ventilation and protect your home against moisture without compromising privacy.
With MADELA Casement, you can enjoy a wider view with a slim stile and easy operation
Basic Performance
-
Structural (Wind Load)
Wind pressure resistant
up to 1200Pa (MADELA-H)
up to 600Pa (MADELA-L) -
Water Tightness
Watertight from outside
up to 200Pa (MADELA-H)
up to 100Pa (MADELA-L) -
Sound Insulation
Provide quiet living atmosphere -25 dB
Features

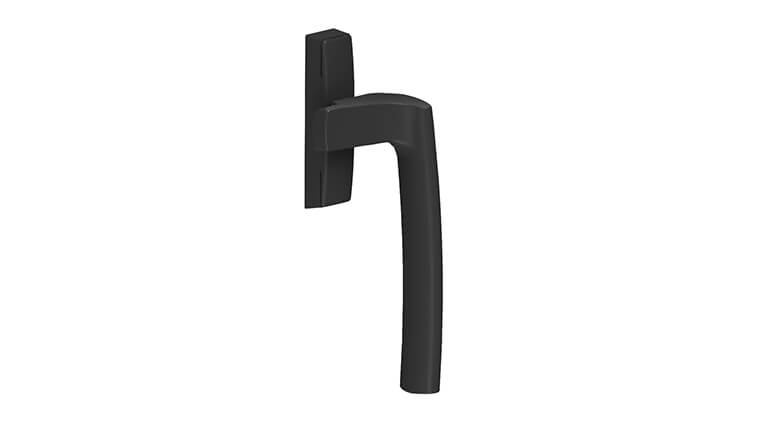

YKK AP Original Hardware
YKK AP Original Hardware is used for the main parts

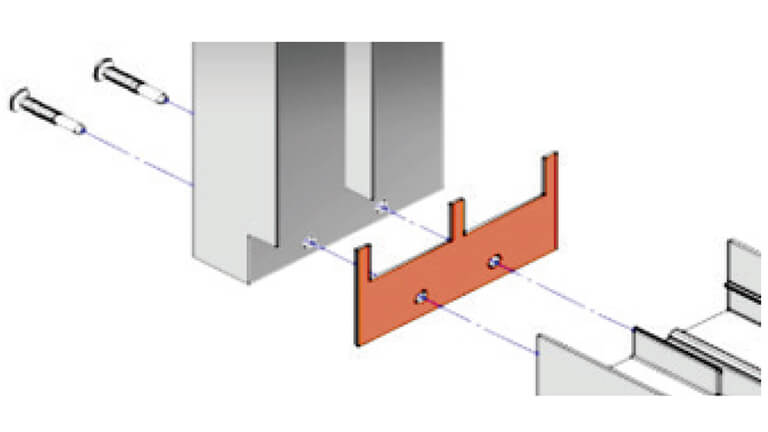

Reliable Water Tightness
Sealer pad is used for metal joint, and processing is completed in YKK AP Factory

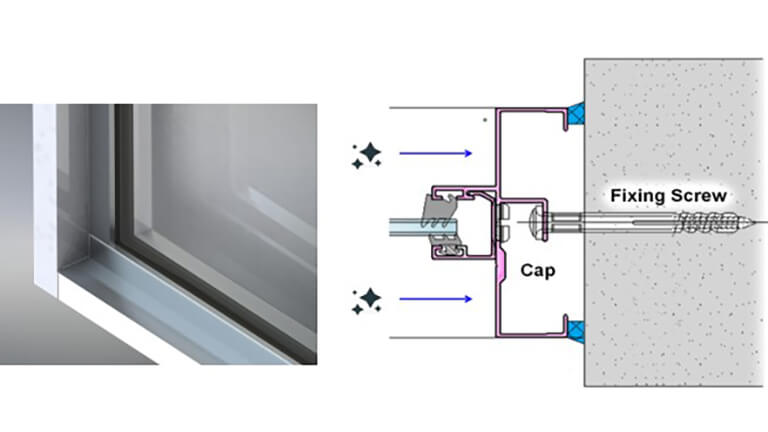

Compatible with Thin Walls
Since it is screwed with the core of the wall, the wall will not break. Clean fit with nonvisible screws or caps

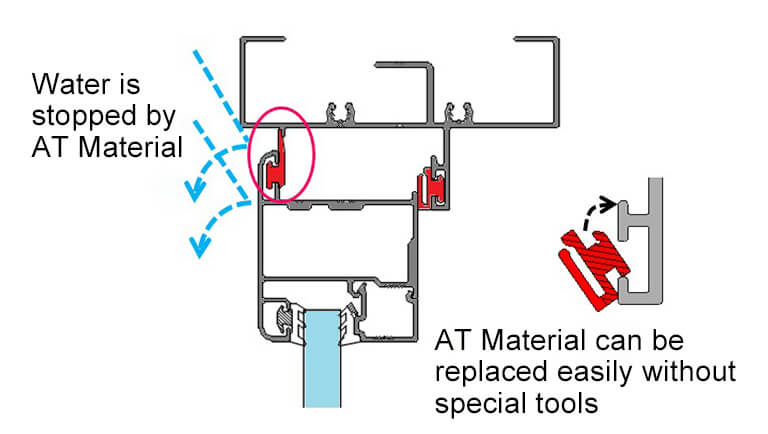

Waterproof structure
Water is stopped with AT Material. It can be replaced easily without special tools
Variation
Item Variation
-
Casement (Single)
-

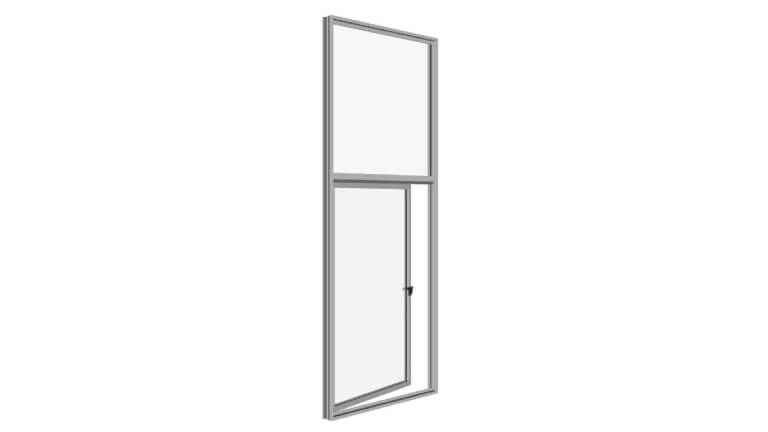

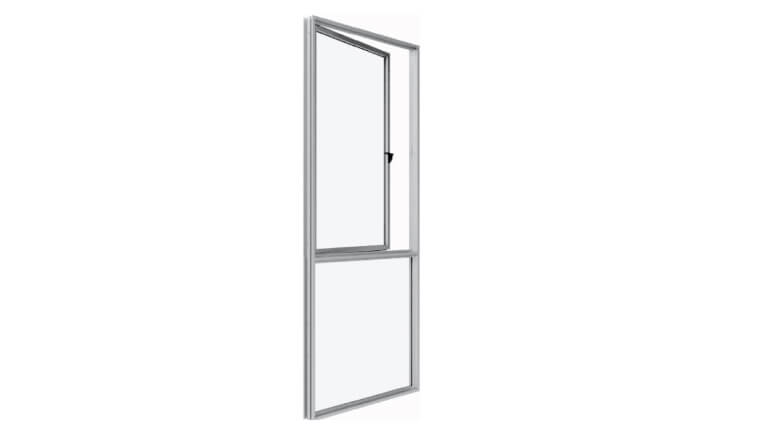

Step Window (2 Level)
-

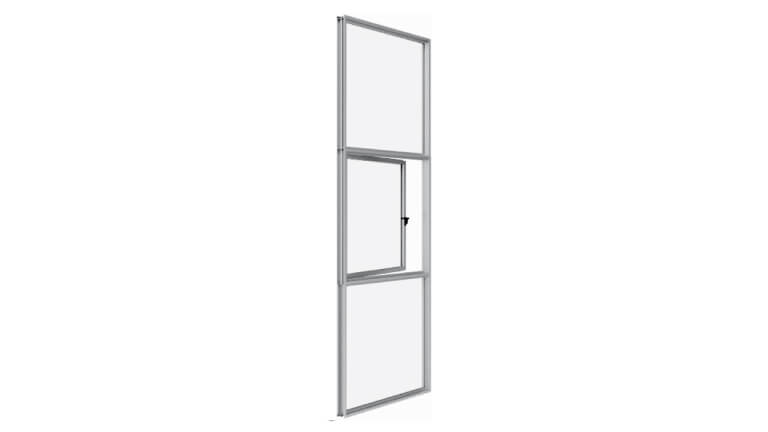

Step Window (3 Level)
-
Continuous Window
Color Variation
YKK AP products are available in a variety of finishes and colors.
- * Color may vary from the original, please kindly check the actual color sample.
Finishing Color
We have three type of surface coating, Anodize, Anodize Plus and Powder Coating.
General Anodize is normal type of anodized color as most popular method in Indonesia.
Anodize Plus is our special technical method, and its durability and appearance are much better than other anodized method. Powder coating can be used for various colors.
- Anodized
-
Anodized (General anodizing with sealing)
Anodized Plus (YKK AP Special Coating)
(anodizing with Electro Deposition) - Powder Coating
-
Powder Coating (Thickness minimum powder coating 50 μm)
Color Variation (Standard Colors)
Standard colors are our recommended colors. We have decided these colors based on our experience, and they can easily match with any color coordinate.
| Finishing Color | White / Ivory |
Light Gray / Champagne |
Deep Gray | Brown | Black |
|---|---|---|---|---|---|
|
Anodized Plus
Fitting for ExteriorResistant to rain and UV |
|
|
|
||
|
Powder Coating
Fitting for InteriorRe-paint OK |
|
|
|
|
- * Color may vary from the original, please kindly check the actual color sample
Lead Time Production
Standard colors have advantage in delivery time.
- *Delivery times vary by region as the above does not include delivery.
-
*This lead time is from producing at AP until delivering to AP distributors.
Please contact each distributor for the final delivery time.
| Standard Colors | |
|---|---|
| Performance Goods | 38-45 days |
| Other Colors | |
|---|---|
| Performance Goods | 46 days ~ |
| New Colors | |
|---|---|
| Performance Goods | 46 days ~ |
| Standard Colors | Other Colors | New Colors | |
|---|---|---|---|
| Performance Goods | 38-45 days | 46 days ~ | |
Repairing Tools
-
Touch Up SprayIt can be used to repair scratches on surfaces quickly.
-
Touch Up PenQuick-dry and easy-to-use pen type, especially for repairing scratched surfaces.
MADELA Leaflet
Further detailed features and specifications are provided in the leaflet/catalog. Please use this for downloading and considering the introduction of the product.
Contact Us
We will propose the most suitable products according to the request. Please feel free to contact us for details.
-
Detailed Specifications and Data
-
Product Price and Quote
-
Confirmation of Delivery Date
-
Proposal of Optional Parts
Information for Distributors
Scope of Work
Supply form : Processed Goods (Delivered in Knockdown System)
| Scope |
Material Production |
Parts |
Processing Assembling |
Delivery | Installation |
Site Management |
Inspection | After Service |
|---|---|---|---|---|---|---|---|---|
| YKK AP Indonesia |  |
|
Processing |
Deliver to Distributors | Except AP matter : Paid by the cause of the matter |
|||
| Distributors | Assembling |
Deliver to Site |
|
|
|
Dispatch Request Form |
- *API delivers to distributors' warehouse or workshop only, on-site delivery is not possible.
Our Support System & Quality Control
-
Support
YKK AP Indonesia provides after-sales service to provide a comfortable living environment. It is one of our strengths to deliver high satisfaction to our customers.
-
Quality Control
Our products are strictly checked for quality at our testing center to provide our customers with high quality and reliable products.
-
YKK AP Distributors
YKK AP is developing a business rooted in the community with certified distributors.
