Brand

NEXSTA

Butt Hinged Door

You Can Count on NEXSTA Butt Hinged Door for its high performance and double glazing that bring positive impact as environment-friendly

Landed House
Apartment
Commercial

Price Range : For Luxury Class

Overview

Butt hinged door supports a wide range of applications such as stores, residential, offices and is commonly used for entry doors and passage doors.
Our NEXSTA Butt Hinged Door is durable and has the ability to sustain heavyweight and has reliable performance, as it adopts YKK AP parts.

Basic Performance

Structural (Wind Load)

1600 Pa Deflection L/125 and L/175
Water Tightness

350 Pa
Air Infiltration

Grade A-4 (JIS)
Sound Insulation

T-1 (-25 dB) (JIS)
T-2 (-30 dB) (JIS)
Rw 24 - 30 (ISO)
Double Glazing

Max 6 + A6 + 6 mm
Glass Groove: 24 and 26mm

Features

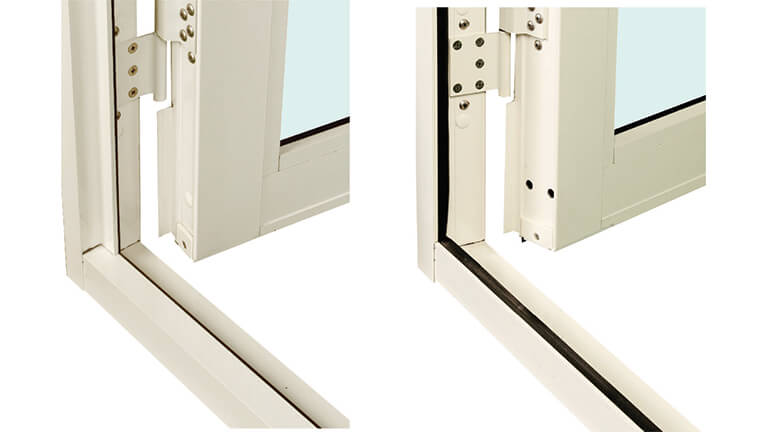

Reliable Performance Without Bottom Sill

Have performance which benefits you of insect prevention and dust prevention.

Reliable Performance With Bottom Sill

Higher performance benefits such as water tightness, air infiltration, sound insulation, insect prevention and dust prevention

Variation

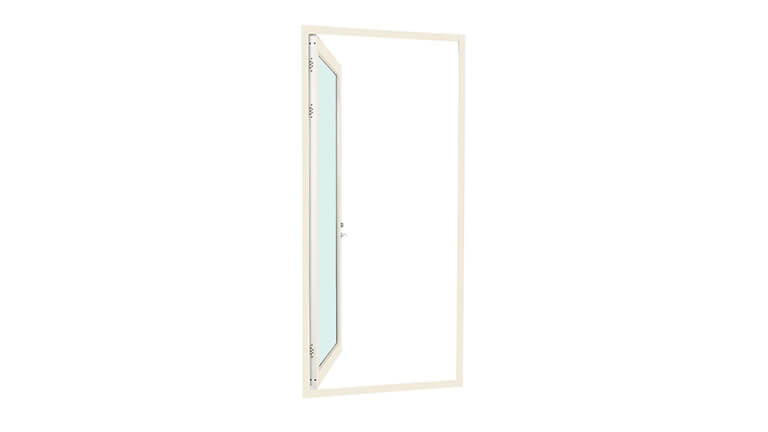

Butt Hinged Door Single Swing

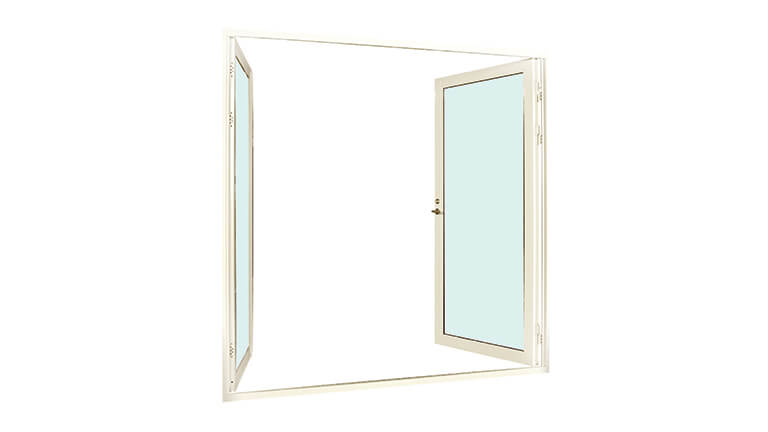

Butt Hinged Door Double Swing

Color Variation

YKK AP products are available in variety of finishes and colors.

* Color may vary from the original, please kindly check the actual color sample.

Finishing Color

We have three type of surface coating, Anodize, Anodize Plus and Powder Coating.
General Anodize is normal type of anodized color as most popular method in Indonesia.
Anodize Plus is our special technical method, and its durability and appearance are much better than other anodized method. Powder coating can be used for various colors.

Anodized: Anodized (General anodizing with sealing)

Anodized Plus (YKK AP Special Coating)
(anodizing with Electro Deposition)
Powder Coating: Powder Coating (Thickness minimum powder coating 50 μm)

Color Variation (Standard Colors)

Standard colors are our recommended colors. We have decided these colors based on our experience, and they can easily match with any color coordinate.

Finishing Color	White / Ivory	Light Gray / Champagne	Deep Gray	Brown	Black
Anodized Plus Fitting for Exterior Resistant to rain and UV
Powder Coating Fitting for Interior Re-paint OK

* Color may vary from the original, please kindly check the actual color sample

Lead Time Production

Standard colors have advantage in delivery time.

*Delivery times vary by region as the above does not include delivery.
*This lead time is from producing at AP until delivering to AP distributors.
Please contact each distributor for the final delivery time.

Standard Colors
Performance Goods	38-45 days

Other Colors
Performance Goods	46 days ~

New Colors
Performance Goods	46 days ~

	Standard Colors	Other Colors	New Colors
Performance Goods	38-45 days	46 days ~

Repairing Tools

Touch Up Spray

It can be used to repair scratches on surfaces quickly.
Touch Up Pen

Quick-dry and easy-to-use pen type, especially for repairing scratched surfaces.

Accessories

Standard Parts

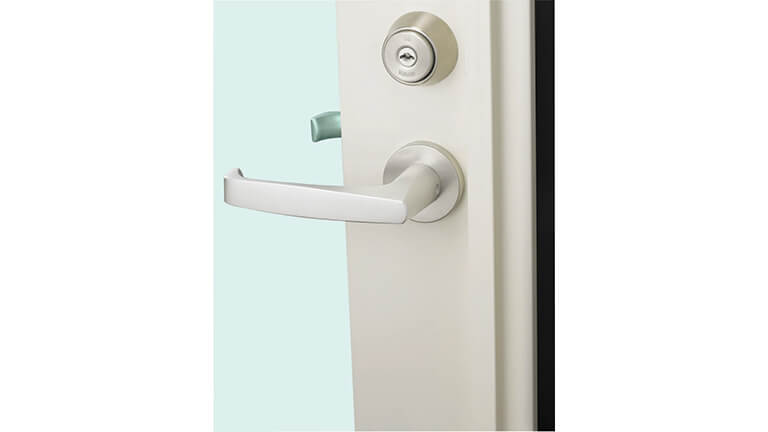

Lever Handle Lock

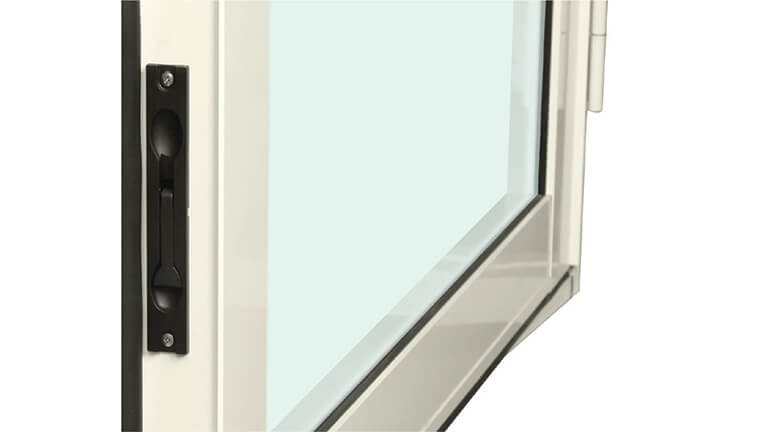

Flush Bolt Double Swing Door

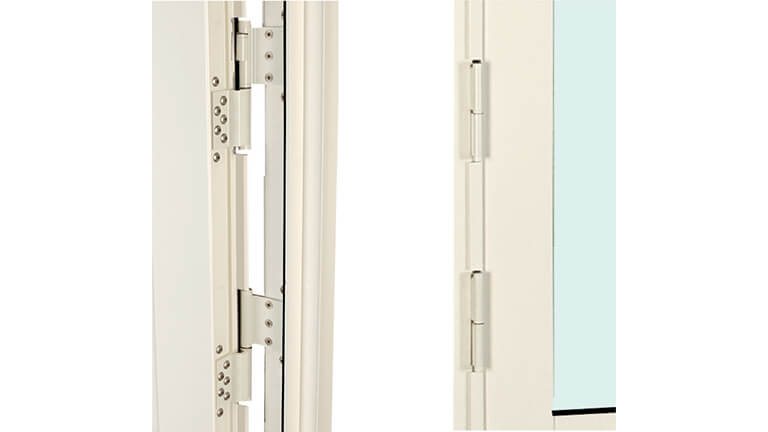

Butt Hinge [Aluminum]

Safety Cap

Bottom Sill [Outswing Only]

Optional Parts

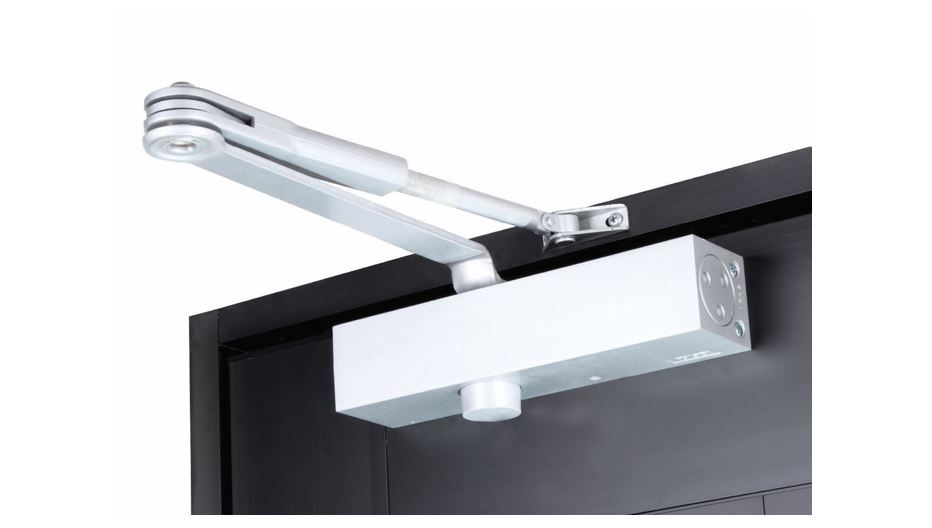

Door Closer

NEXSTA Lineup Catalog

Further detailed features and specifications are provided in the catalog. Please use this for downloading and considering the introduction of the system.
